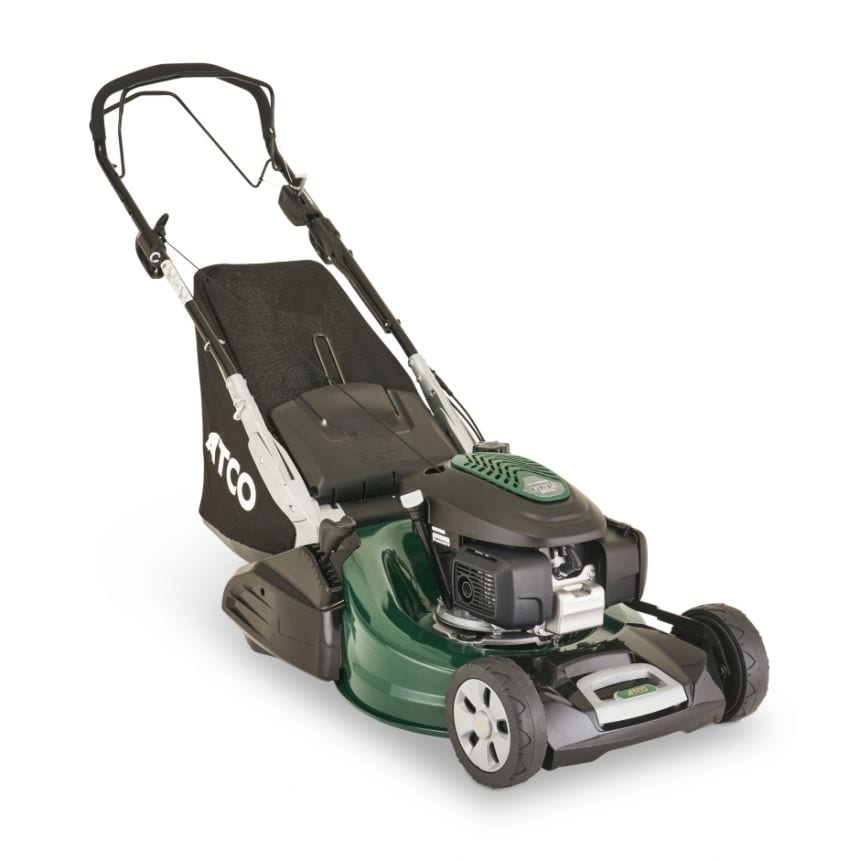

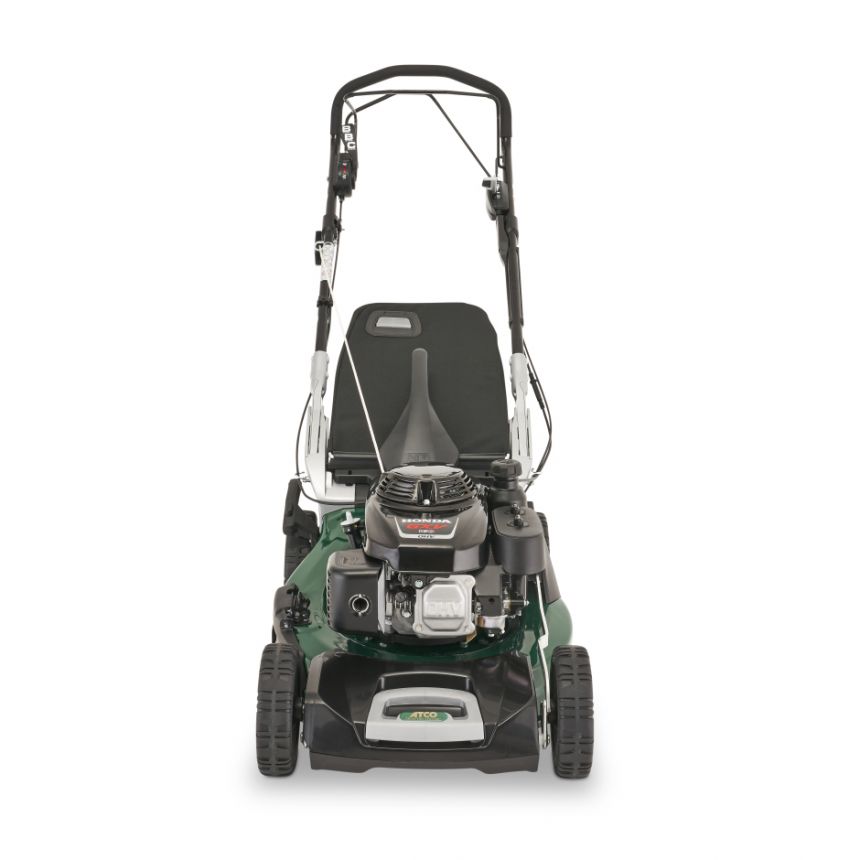

The Atco 22 SH V roller lawnmower is  powered by a 201cc Honda engine and is fitted with a hybrid aluminium/steel cutter deck, the Atco Liner 22SH V excels in terms of flexibility of use, performance and build quality. It is supplied with a large 80-litre grass bag and  53cm (21”) cutting width.


Original price was: £1,425.00.Current price is: £1,379.00. inc. VAT


Atco 22sh Self propelled roller mower

This Atco Liner 22SH V self propelled roller Lawnmower excels in terms of flexibility of use, performance and build quality. It is supplied with a large 80-litre grass bag and boasts an expansive 53cm (21”) cut. Powered by a Honda GCVx200 engine; a high capacity 201cc four-stroke air-cooled  engine

The Atco mower has a  hybrid galvanised steel/aluminium cutter housing the ultimate in strength and durability; while a speed variator enables the successful management of varying terrains and grass lengths. The eight pre-set cutting height lever on the Atco 22 SHV makes easy work when you need to adjust the height of cut

Not only does the rear roller on the Atco Liner 22SH V provide a perfect striped lawn it also provides extra stability when mowing along the edges of flowerbeds and vegetable plots.
With many mowers, the hard to reach under deck area can be tricky to keep free of corrosive, performance inhibiting debris. Not so with the Atco Liner 22SH V Lawnmower simply attach your hosepipe to the fixture point, run the water, spin the blades and the job’s done! Other attributes include a front skid-plate for scalp-free results when manoeuvring on uneven ground; ball-bearing roller/wheels mounts for superior longevity; and comfort-enhancing VCS vibration control. This model’s substantial 53cm (21”) cutting width and large 80-litre collector makes it suitable for use for larger lawns up to 3000m2 in size.



Cutting method Collecting in 80L bag
Cutting width 53 cm
Deck material Galvanized steel
Cutting height adjustment Centralized
Cutting height positions 8 positions
Cutting height range 13 – 65 mm


Collector capacity 80 l
Handlebar type Ergonomic 25 mm adj. by button + soft grip
Wheels 200/ROLLER grooved wheels on ball bearings
Vibe Control System (VCS) Yes
Front handle Yes
Adjustable handlebar Yes
Foldable handlebar Yes
Washing link Yes


Power source Petrol
Power 3.82 kW
Engine Brand Honda
Engine model GCVx200 OHV Autochoke
Displacement 201 cm³
Engine rotation speed 2900 rpm
RPM control Fixed rpm
Starter Recoil
Fuel tank capacity 0.95 l
Pack weight 53.04 kg
Product length 1680 mm
Product width 560 mm
Product height 1100 mm
Weight 47 kg

Traction Rear-roller drive
Driving Self-propelled
Speed forward 3 to 4.9 Km/h
Speed variator Yes
Guaranteed sound power level (LwA) – dB(A) 98
Measured sound power level dB(A) 98
Vibration level hand (m/s2) 3.2
Measured sound pressure level at operator ear dB(A) 86
